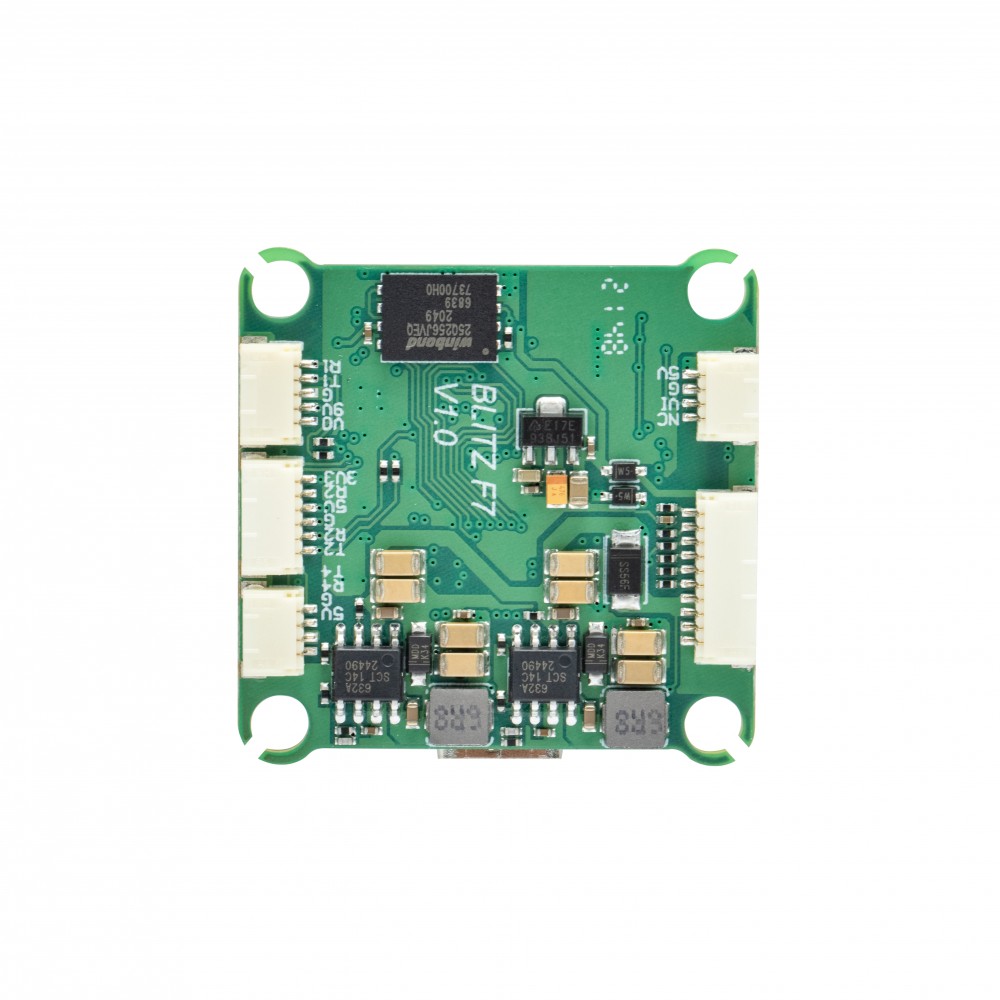

BLITZ F7 V1.1 Flight Controller

PRODUCT DESCRIPTION
Top Features:

• - Improved circuit design, better components and lower electrical noise!
• - DJI HD VTX Connector (Plug-and-Play / No soldering required)
• - FC indicator LEDs for visual debugging
• - With LC filter

- 2022/Feb: Version updated to V1.1 / Gyro changed to Bosch BMI270 due to availability & price issues with MPU6000.

• MCU: STM32 F722
• Gyro: BMI270/li>
• Barometer: DPS310/li>
• OSD Chip: AT7456E/li>
• Flash: 32MB (Blackbox flash)/li>
• UARTS: 6/li>
• Motor outputs: 4x (SH1.0 connector)/li>
• I2C serial: SDA / SLA pads/li>
• Smartaudio / IRC Tramp VTX protocol supported/li>
• LED controller: Yes/li>
• Beeper pad: Yes/li>
• Firmware target: IFRC-IFLIGHT_BLITZ_F722/li>
• Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter/li>
• Dimensions: 36.5*35 mm/li>
• Weight: 7.8g/li>
• BEC: 5V 2.5A / 9V 2A/li>

• - UART 1 for VTX HD / Analog
• - UART 2 for a Receiver
• - UART 3/4/5 for GPS or other sensors that require a serial port
• - UART 6 for ESC Telemetry

• 1. F722 MCU has an inner inverter.
• 2. SBUS、CRSF、ELRS、IBUS、DSM ETC... can be connected to any unused UART_RX，we suggest you connect to Uart_RX2
• 3. Frsky SmartPort，Tramp & Smartaudio can be connected to any unused UART_TX，we suggest you connect to Uart_TX1
• 4. F.port can be connected to any unused UART_TX，we suggest you connect to Uart_TX2

• - 1x SH1.0 - 5pin connector for HD VTX/Analog VTX&CAM (R1/T1/G/9V/VO)
• - 1x SH1.0 - 10pin connector for ESC (R6/CUR/M4/M3/M2/M1/BAT/BAT/G/G)
• - 1x SH1.0 - 6pin connector for any receiver or DJI（3V3/R2i/5V/G/R2/T2）
• - 1x SH1.0 - 4Pin connector GPS (T4/R4/G/5V)
• - 1x SH1.0 - 4Pin connector LED & Beeper (5V/G/VI/NC)

• 1 x BLITZ F7 V1.1 Flight Controller
• 1 set of FC connectors (as above)
• 1 set silicon grommets
